Garage door springs are crucial for the safe and smooth operation of your entire garage door system. They hold and release the required tension, ensuring the door operates smoothly and efficiently. When these springs wear out or break, it’s crucial to replace them with the right measurements to ensure the door operates safely and efficiently. In this guide, we will walk you through how to measure garage door springs to guarantee a successful and safe replacement, so your door continues to operate smoothly.
Knowing how to measure garage door springs correctly can prevent dangerous accidents, as improperly sized springs can cause issues like an off-track door or improper tension. By following the right process, you will not only enhance your garage door’s efficiency but also save time and money. Get started with our step-by-step instructions to avoid costly mistakes and ensure your garage door operates safely and smoothly.
Why Measuring Garage Door Springs Properly Matters
Measuring garage door springs correctly is vital for your garage door’s safe and smooth operation. If the springs are not measured accurately, it can cause misalignment, making the door difficult to open or causing it to malfunction. Accurate measurements are key to ensuring the door operates smoothly and efficiently.
Incorrect spring sizing can lead to various issues. The door may not open evenly, creating strain on the motor and other components. If the springs are not properly matched to the door’s weight, it may close too fast or struggle to remain open. Proper measurements prevent these issues.
Additionally, using the wrong type of springs can result in expensive repair costs. Incorrectly sized springs may damage the garage door opener, increase wear on other parts, and lead to costly repairs. Learning how to measure garage door springs correctly helps avoid these problems and ensures the door operates safely and efficiently.
Safety First – What You Need to Know Before You Start Measuring Garage Door Springs
Safety should always come first before doing and learning how to measure garage door springs. Garage door springs are under significant tension, making them hazardous if not managed correctly. If not handled with care, they can snap, causing serious injuries. Prioritize safety at all times.
Make sure to wear proper safety gear to protect yourself when handling these springs. Safety goggles and gloves are essential, and wearing long sleeves to protect your arms is also wise. Refrain from wearing loose clothing that could become tangled in the springs and lead to accidents.
If you’re not sure about the process or handling the springs, it’s safest to consult a professional. If you decide to measure the garage door springs yourself, make sure you’re confident in your ability to take accurate measurements. If in doubt, calling a garage door expert will ensure safety and precision.
Tools You’ll Need to Measure Garage Door Springs
Having the proper tools is essential for accurately measuring garage door springs. Below is a table listing the essential tools you’ll need, their purpose, and an additional column for usage tips.
| Tool | Purpose | Tips for Use |
| Tape Measure (Flexible Steel) | Essential for measuring the spring’s length, wire diameter, and overall size. | Ensure it’s flexible enough for accurate length measurement. |
| Winding Bars and Locking Pliers | Helps safely adjust the tension in torsion springs, usually mounted above the garage door. | Use carefully to avoid accidental snapping. |
| Digital Caliper | Perfect for measuring the inner diameter of the spring with precision. | Use for accurate inner diameter measurement to avoid errors. |
| Notebook or Mobile Notes | Keep track of your measurements and record details for future reference. | Take clear notes or photos for future comparisons. |
These tools are essential when learning how to measure garage door springs for a safe and efficient replacement.
Step-by-Step: How to Measure Torsion Garage Door Springs
Accurately measuring torsion springs is crucial for the safe and smooth functioning of your garage door. Here’s a simple guide on how to measure garage door springs for a safe and accurate replacement.
Step 1 – Measure the Wire Diameter
To determine the wire diameter of the torsion spring, count between 10 to 20 coils and find the average measurement. Divide the total length by the number of coils to get the average diameter. This helps select the correct spring size for replacement.
Step 2 – Determine the Inside Diameter (ID)

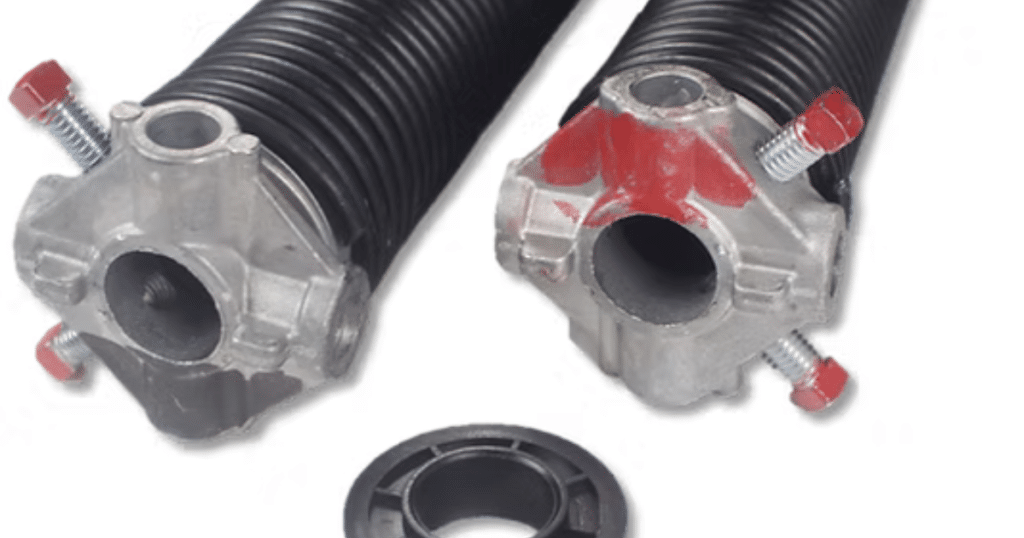

Check the winding cone for an imprint that indicates the spring’s inner diameter. If there’s no imprint, use a caliper to measure the inside diameter manually for precision and correct sizing.
Step 3 – Measure the Overall Length
Unwind the torsion spring, making sure it’s not under tension. Measure the full length from one end to the other, including the coils, to determine the correct replacement spring size.
Step 4 – Identify the Wind Direction
Examine the winding cone’s position to determine the wind’s direction. The direction the cone faces tells you whether it’s a left-wound or right-wound spring, which is crucial for accurate replacement.
Step 5 – Count the Number of Springs
If your garage door has two springs, measure both, even if only one is damaged. Replacing both springs ensures balance and prevents further issues, ensuring smooth operation.
Step-by-Step: How to Measure Extension Garage Door Springs
Measuring extension springs accurately is essential for proper garage door operation and replacement. Follow these simple steps to measure extension garage door springs for the best results.
Step 1 – Disconnect Power and Open the Door Fully
Disconnect the garage door opener’s power and open the door fully to release tension from the springs. This ensures safety and allows for accurate measurements without spring interference.
Step 2 – Measure the Spring Length (Unstretched)
Measure the spring’s length while it’s not under tension. The unstretched length is crucial for determining the proper spring size, ensuring a perfect fit and optimal functionality.
Step 3 – Determine the Spring’s Weight Capacity
Extension springs often feature color codes that indicate their weight capacity. Use a color-code chart to find the right spring based on its color, ensuring it can support your garage door’s weight.
Step 4 – Measure the Spring’s Wire Diameter
Use a caliper to measure the wire diameter. This is crucial for selecting a spring with the correct strength and size to ensure smooth and reliable door operation.
Choosing the Right Replacement Garage Door Spring
When selecting a replacement garage door spring, it’s important to match the measurements you took with the correct spring type. Following the manufacturer’s standards for your specific model ensures the best fit and performance. Always opt for OEM (original equipment manufacturer) parts for the most dependable replacement.
The proper replacement spring is crucial for maintaining your garage door’s balance and smooth operation. Opting for non-standard or aftermarket parts can cause malfunctions or accelerate wear and tear, potentially leading to costly repairs. Knowing how to measure garage door springs correctly helps ensure a precise fit.
Common Mistakes to Avoid When Measuring Garage Door Springs
When learning how to measure garage door springs, homeowners often make a few common mistakes that can lead to inaccurate measurements and safety risks. Avoid these errors to ensure a proper spring replacement.
- Measuring Springs Under Tension: Never measure springs while they are under tension. Always release the tension beforehand to avoid injury and guarantee precise measurements.
- Misidentifying Left vs. Right Wind: It’s crucial to distinguish between left-wound and right-wound springs. Mixing them up can lead to an unbalanced door, affecting its smooth operation.
- Relying on Worn-Out Springs for Measurements: Avoid using old or stretched springs for measurements. Always measure the spring in its unwound state to ensure precise readings.
- Ignoring Spring Stretch/Fatigue: Springs can stretch and wear out over time. Measure the spring while it’s still in good condition to ensure the most accurate and reliable results.
When You Should Call a Professional Instead of Measuring Garage Door Springs Yourself
While learning how to measure garage door springs is possible for homeowners, some situations require professional expertise. Proper handling and adjustments are crucial for safety and to meet local regulations.
- Safety Thresholds: If you lack the proper safety equipment or are unsure about handling the springs, it’s best to call a professional garage door repair service.
- Replacing vs. Adjusting: Some issues may require adjusting rather than just measuring the springs. Professionals have the expertise to perform these adjustments safely.
- Local Regulations or HOA Codes: Certain areas may have codes or regulations for garage door spring replacements. Experts are well-versed in these requirements and can ensure everything is compliant.
How to Maintain Your Garage Door Springs for Longer-lasting Performance
By maintaining and caring for your garage door springs properly, you can significantly prolong their lifespan. Here are a few tips to help you maximize the lifespan and performance of your springs:
1. Proper Lubrication Schedule
Lubricate your springs regularly to minimize friction and prevent excessive wear. This can prevent damage and help the springs last longer.
2. Visual Inspection Frequency
Check your springs monthly for signs of wear, rust, or any damage to ensure they remain in good condition. Identifying problems early can help avoid costly garage door repairs down the line.
3. Balanced Door Testing Technique
Check the balance of your garage door by disconnecting the opener and lifting it by hand. If the door remains halfway open, it indicates that the springs are properly balanced.
FAQs About How to Measure Garage Door Springs
How do I tell if I have torsion or extension springs?
Torsion springs are installed horizontally above the garage door, whereas extension springs are positioned along the door’s sides. Identifying the spring type is important for proper maintenance and replacement when learning how to measure garage door springs.
What happens if I install the wrong size garage door spring?
Installing the incorrect size garage door spring can cause the door to malfunction and potentially harm the opener as well. It can also create a safety hazard, leading to potential accidents or door malfunctions.
Should I replace both springs or just one?
Always replace both garage door springs, even if only one is damaged. Replacing both ensures the door remains balanced, prevents uneven wear, and reduces the risk of future spring failure or damage to the new garage door system.
How long do garage door springs typically last?
Torsion springs typically last for approximately 10,000 cycles, while extension springs generally have a slightly shorter lifespan. Regular maintenance, such as lubrication and inspection, can help extend the smooth operation of your garage door.
Conclusion
Accurately measuring your garage door springs is vital for maintaining the safety and smooth operation of your garage door system. Knowing how to measure garage door springs correctly can help avoid problems such as misalignment, damage, and expensive repairs in the future. If you’re unsure, it’s always wise to consult professionals for expert assistance and precision in spring replacement.
